Professional BGA Chip Reballing Process

Professional BGA Chip Reballing Process

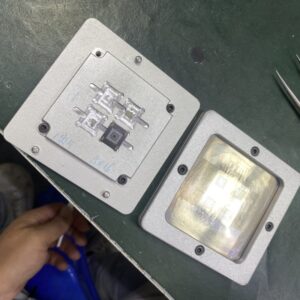

1. Fix the BGA chip firmly on the positioning fixture.

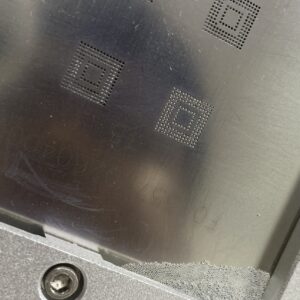

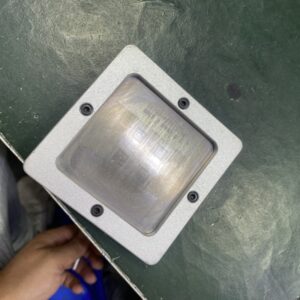

2. Align the dedicated stencil with the chip pads.

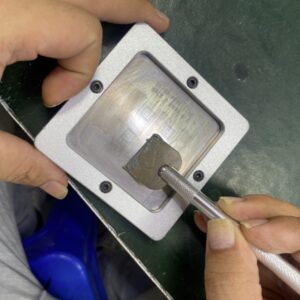

3. Spread solder paste evenly over the stencil openings.

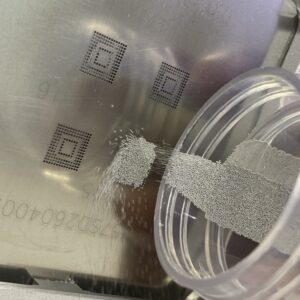

4. Pour solder balls onto the stencil.


5. Sweep excess solder balls away to leave uniform balls on pads.

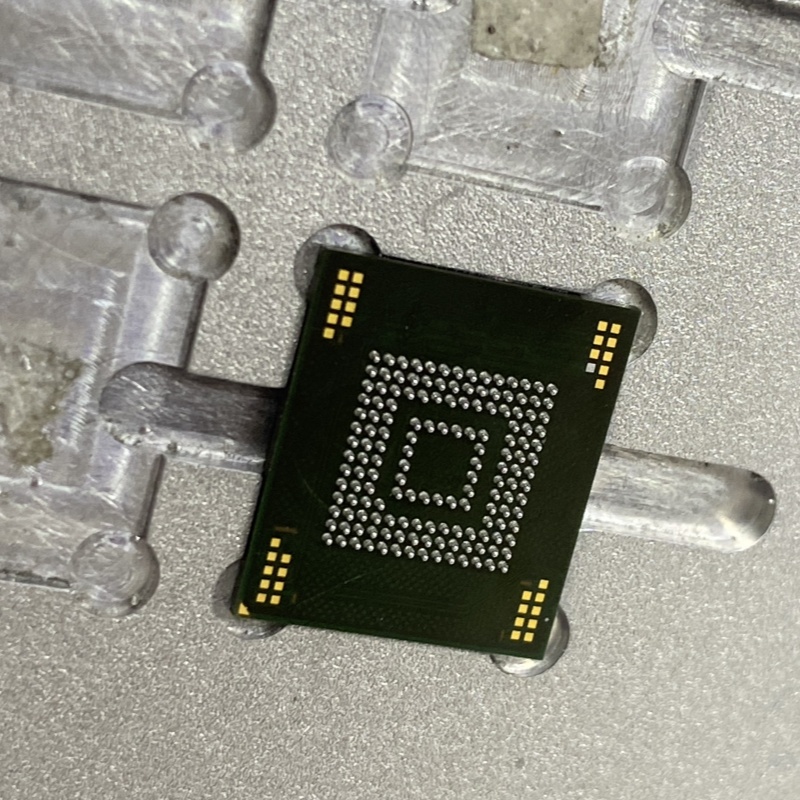

6. Finished chip with neat, evenly arranged solder balls.
