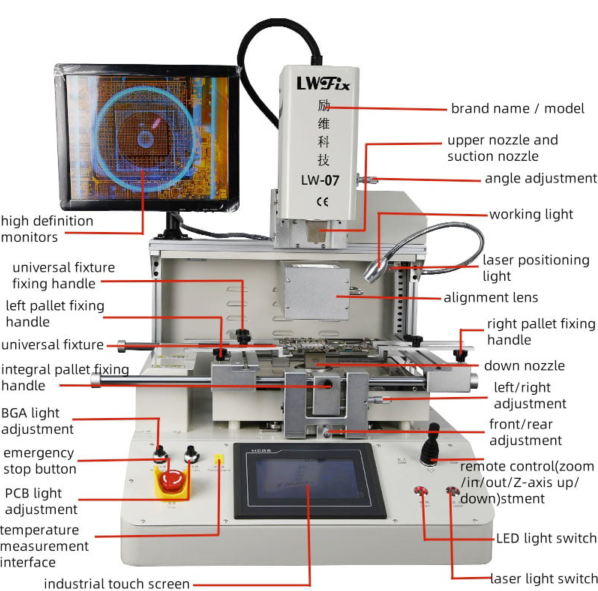

LW-07 SMT surface mount component rework station with intelligent touchscreen and three temperature zones
High-Precision BGA Rework Station with Optical Alignment – Advanced Chip Repair Machine
Product Information
Professional specifications and comprehensive information
LW-07 BGA Rework Station Core Features
1.Independent 3-Temperature Zone Control： Upper/lower hot air zones + IR preheating zone, ±2℃ temperature accuracy. Supports 8-section temperature setting, simultaneous top/bottom heating, and independent control of each zone. Avoids PCB deformation via uniform heating, with 4 temperature curve displays, data storage, and external temperature calibration.
2.Precise Optical Alignment： HD split-screen CCD color vision system with zoom, auto-focus, aberration correction, and brightness adjustment. Equipped with 15” LCD monitor for clear observation.
3.User-Friendly Operation： HD touch screen interface, integrated heating device and mounting head. 360° rotatable titanium alloy nozzles (easy to replace). X/Y/R axes micrometer fine-tuning, ±0.01mm alignment accuracy.
4.Versatile & High-Performance： 4 operating modes (remove/weld/mount/semi-auto). Adjustable air speed, synchronized saving of fan speed and temperature curves. Slide rail-driven upper heating head for higher precision.
These powerful features are just the tip of the iceberg! Whether you want to dive into detailed performance parameters, check real application cases in your industry, or confirm customized nozzle solutions, we’re ready to support you. Feel free to share your specific needs—let’s tailor the most suitable plan for your production!
click here 👇 Get The Free Technical Specifications.
1. All production lines have adequate quality control and QA/QC inspectors work independently from the production line.
2. Offer free spare parts and maintenance services within the 12-month warranty period, while other relevant costs shall be borne by the buyer.
3. We will provide a demo operation video and online training. You are also welcome to visit our company, where our technicians will conduct on-site training for you and arrange for you to test the machine personally.
4.We offer high-quality and professional after-sales service, with solutions provided within 24 hours.
