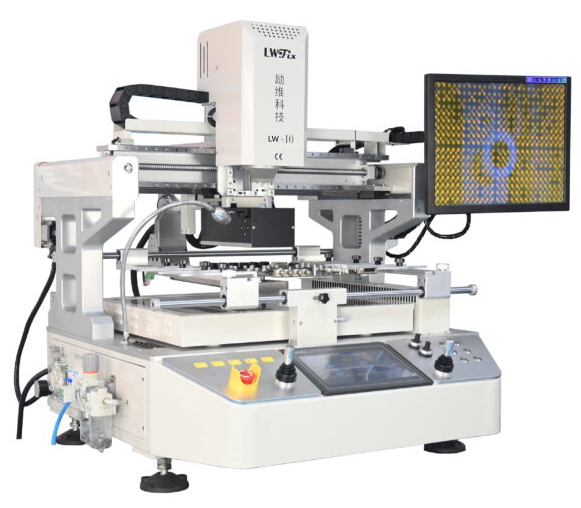

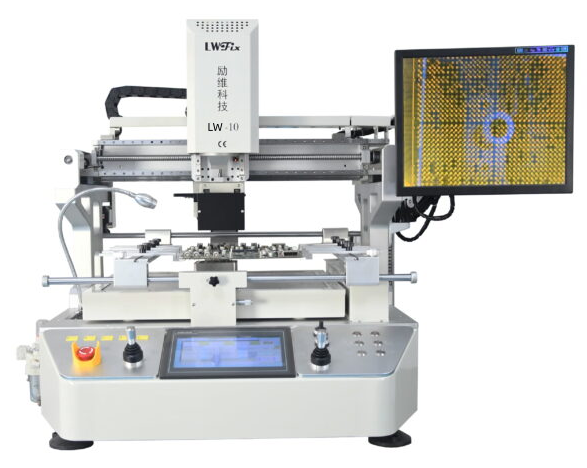

PLC Control Gantry-Type Automatic Chip Disassembly & Welding Machine with Infrared Preheating
The Lewei LV-10 integrates automatic mounting, soldering, and disassembly with precise control using Panasonic PLC and servo motors. It features rapid infrared preheating, gas heating for optimal soldering, and a high-efficiency design for up to 99.99% chip repair success
Product Information
Professional specifications and comprehensive information
Core Technical Features
1. Integrated Full-Automation Function
Integrated design of hot air head and mounting head, supporting automatic clamping, welding and disassembly.
2. Stable & Reliable Control System
Panasonic PLC as the core, matched with Panasonic servo motors and Leasai stepper motors for precise and stable operation.
3. Heat-Deformation-Proof Precise Alignment
Split-type alignment lens, avoiding thermal expansion and contraction caused by long-term baking in the infrared preheating zone.
4. High-Efficiency Transmission Structure
Gantry structure combined with screw rod and servo motor, driving the upper and lower heating heads to move at variable speeds with high efficiency and accurate positioning.
5. Highly Compatible Heating Solution
Large-air-outlet hot air system of the upper air head, compatible with 99.99% of chips on the market; gas-heated heating head with optional nitrogen or compressed air supply to ensure welding yield.
6. High-Efficiency CNC Automatic Operation
One-click start, capable of removing 6 faulty chips at a time; equipped with an infrared preheating zone to improve process stability.
These powerful features are just the tip of the iceberg! Whether you want to dive into detailed performance parameters, check real application cases in your industry, or confirm customized nozzle solutions, we’re ready to support you. Feel free to share your specific needs—let’s tailor the most suitable plan for your production!
click here 👇 Get The Free Technical Specifications.
1. All production lines have adequate quality control and QA/QC inspectors work independently from the production line.
2. Offer free spare parts and maintenance services within the 12-month warranty period, while other relevant costs shall be borne by the buyer.
3. We will provide a demo operation video and online training. You are also welcome to visit our company, where our technicians will conduct on-site training for you and arrange for you to test the machine personally.
4.We offer high-quality and professional after-sales service, with solutions provided within 24 hours.
