LV-X5 Desktop Mini Jet Soldering Machine, Selective Wave Soldering and Integrated Wave Soldering System
The LV-X5 desktop integrated wave soldering machine features a selective wave soldering core, supporting rapid changeover for multiple product types. It requires no special fixtures and easily handles the soldering needs of mixed-technology boards, including both through-hole and surface-mount components
Product Information
Professional specifications and comprehensive information

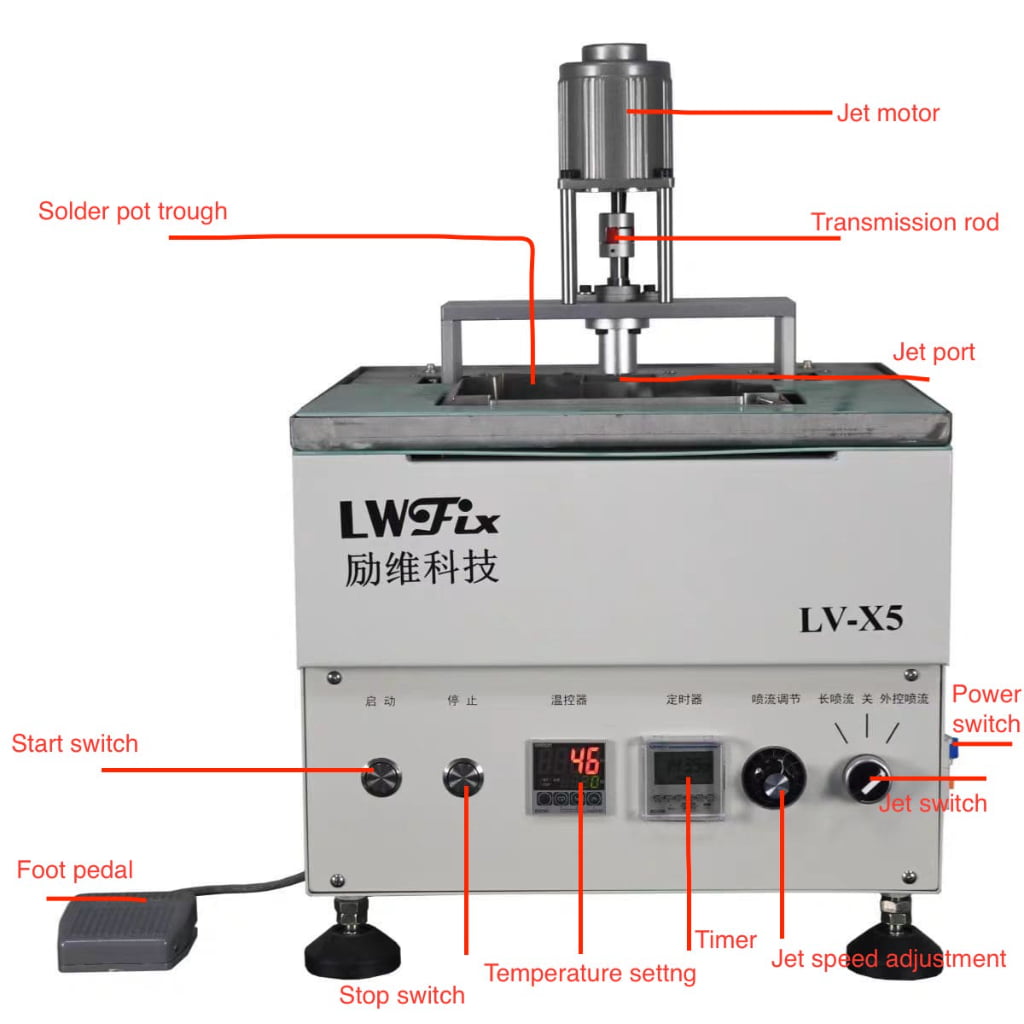

Core Features
1. Precise Temperature & Jet Control: Supports solder melting temperature setting, with manually adjustable jet height to meet different soldering requirements.
2. Triple Safety Protection: Equipped with over-temperature alarm. Power switch features overload and leakage protection (monthly inspection required), and the external control jet interface has 220V electrical protection design.
3. Three Jet Modes: Includes continuous jet (constant operation), jet off, and external control jet (controlled by external signal), enabling flexible switching.
4. Easy Start/Stop & Timed Wake-Up: Simple manual start/stop operation. In sleep mode, the timer allows presetting automatic wake-up time, eliminating repeated restarts.
These powerful features are just the tip of the iceberg! Whether you want to dive into detailed performance parameters, check real application cases in your industry, or confirm customized nozzle solutions, we’re ready to support you. Feel free to share your specific needs—let’s tailor the most suitable plan for your production!
click here 👇 Get The Free Technical Specifications.
1. All production lines have adequate quality control and QA/QC inspectors work independently from the production line.
2. Offer free spare parts and maintenance services within the 12-month warranty period, while other relevant costs shall be borne by the buyer.
3. We will provide a demo operation video and online training. You are also welcome to visit our company, where our technicians will conduct on-site training for you and arrange for you to test the machine personally.
4.We offer high-quality and professional after-sales service, with solutions provided within 24 hours.
