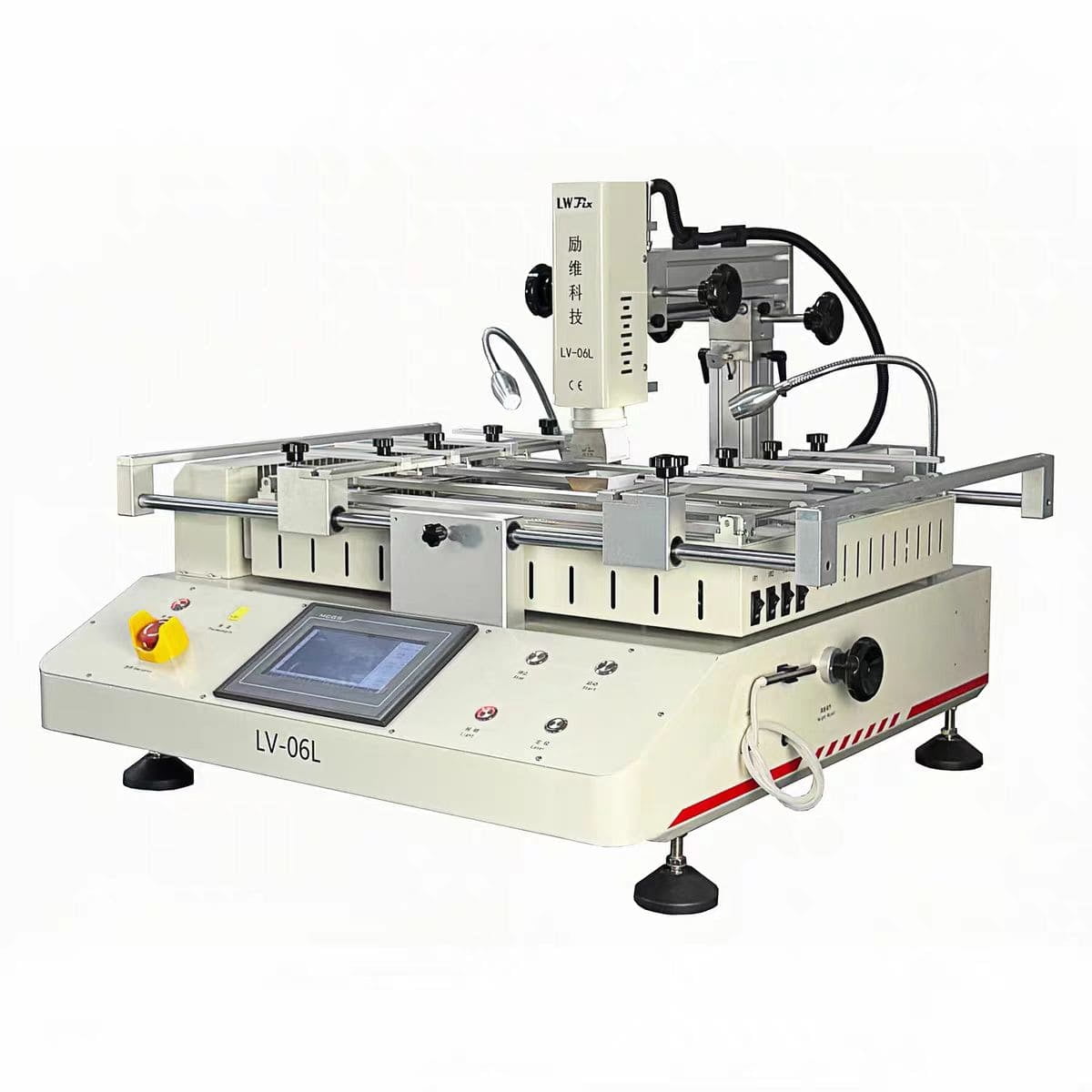

LV-6L Desktop-type large three-zone rework station with laser positioning for rapid repair

Core Features of 6LBGA Rework Station
1. Three-axis linear slide with micro-adjustment for precise positioning and easy operation. V-groove universal fixture fits various BGA package sizes, protecting PCB boards from damage and deformation.

2. Independent three-temperature zone control (±2℃ accuracy) with upper/lower hot air heating and bottom infrared preheating. 360° rotatable air nozzle + large-area infrared heating ensures uniform heat distribution.

3. Touchscreen + single-chip microcomputer control, supporting storage of multiple temperature curves and instant curve analysis. Equipped with power-on password protection and external temperature measurement interface for precise temperature detection.

4. High-power cross-flow fan for rapid PCB cooling, boosting efficiency. Built-in vacuum pump (with external vacuum pen) for easy BGA chip handling; laser red dot positioning enables quick rework target alignment.

5. CE certified, featuring dual over-temperature protection, emergency stop button and automatic power-off for abnormal conditions. Post-welding alarm and “advance alarm” functions for safe and user-friendly operation.
