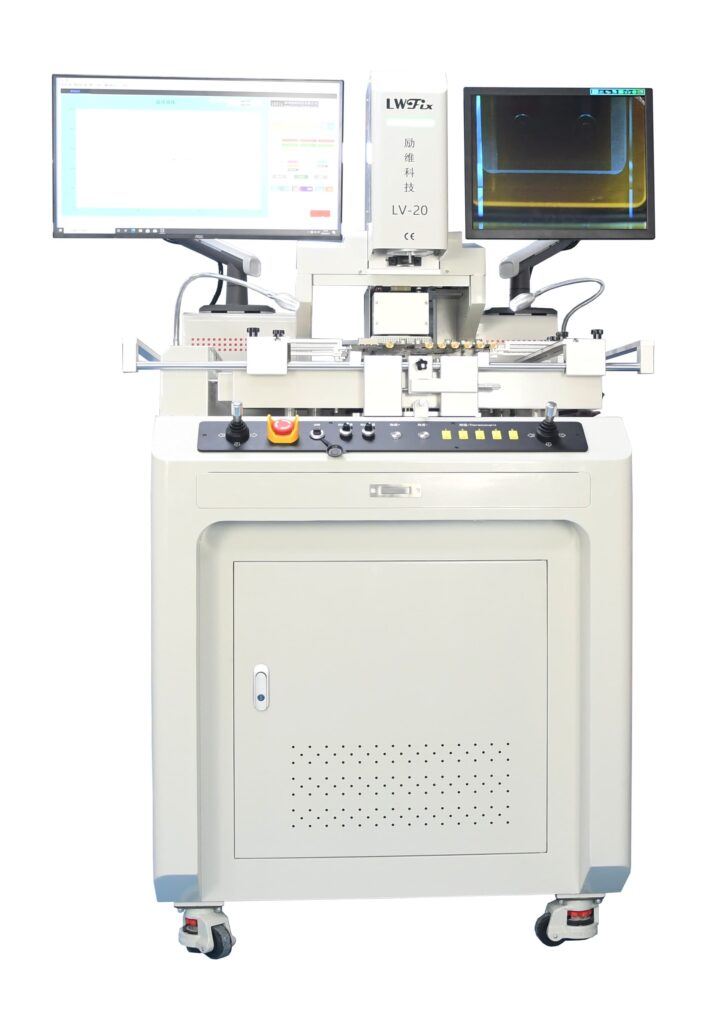

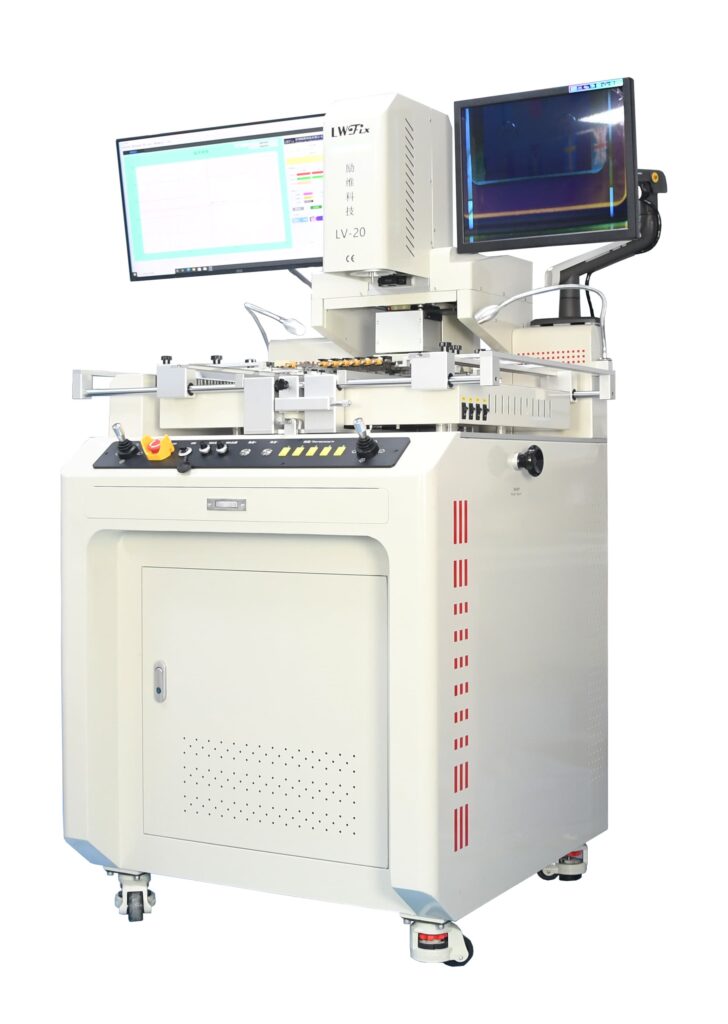

LV-20 Advanced SMT Rework Tool | 6-Axis Control & Large Infrared Preheating Area for BGA/POP/CCGA/ECU
LV-20 is a high-precision ECU/SMT rework machine with integrated soldering/desoldering, optical alignment, and smart temp control. It fits diverse chips, supports MES, and suits mass production.
Product Information
Professional specifications and comprehensive information
Lewei LV-20 Technical Features
Core Function Integration:
Integrated hot air nozzle + mounting head, supporting automatic mounting, soldering, and desoldering. Compatible with high-difficulty components like ECU, BGA, POP, and CCGA.
High-Precision Control:
Powered by Advantech industrial PC, Mitsubishi 6-axis motion card, and Panasonic servo motors, with Lewei stepper motor-controlled mounting nozzle. Adjustable pressure within 10g, with zero-pressure mounting for small chips.
Efficient Heating System:
Hot air heating for upper and lower zones + third-zone carbon fiber heating tube (fast heating, prevents PCB deformation).
Lewei’s innovative multi-channel heating system with outlets designed for 99% of market chips.
Large 600×480mm infrared preheating zone.
Intelligent Visualization:
27-inch industrial touch screen + 19-inch HDMI optical alignment screen, dual-spectral HD vision (50x zoom + auto-focus), with real-time display of 8 temperature zone curves.
Convenience & Safety:
10-step temperature ramping + 10-step constant temperature control (touchscreen curve analysis).
Multiple alloy nozzles (360° rotation, easy to replace).
Built-in smoke purification system, supports MES connection.
These powerful features are just the tip of the iceberg! Whether you want to dive into detailed performance parameters, check real application cases in your industry, or confirm customized nozzle solutions, we’re ready to support you. Feel free to share your specific needs—let’s tailor the most suitable plan for your production!

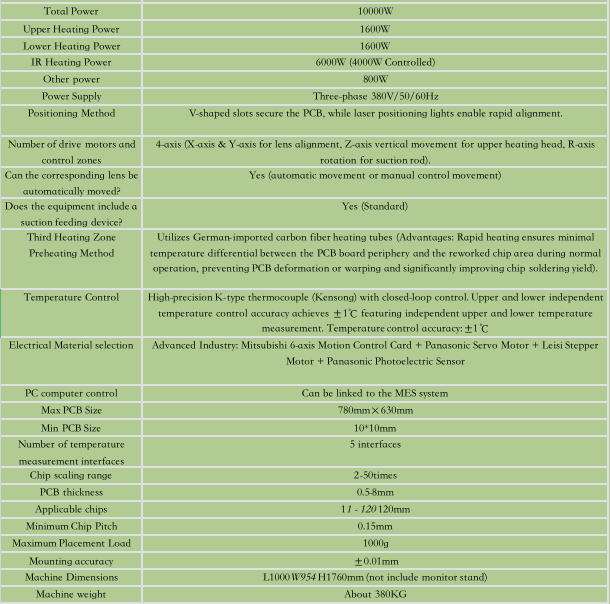

click here 👇 Get The Free Technical Specifications.
1. All production lines have adequate quality control and QA/QC inspectors work independently from the production line.
2. Offer free spare parts and maintenance services within the 12-month warranty period, while other relevant costs shall be borne by the buyer.
3. We will provide a demo operation video and online training. You are also welcome to visit our company, where our technicians will conduct on-site training for you and arrange for you to test the machine personally.
4.We offer high-quality and professional after-sales service, with solutions provided within 24 hours.
