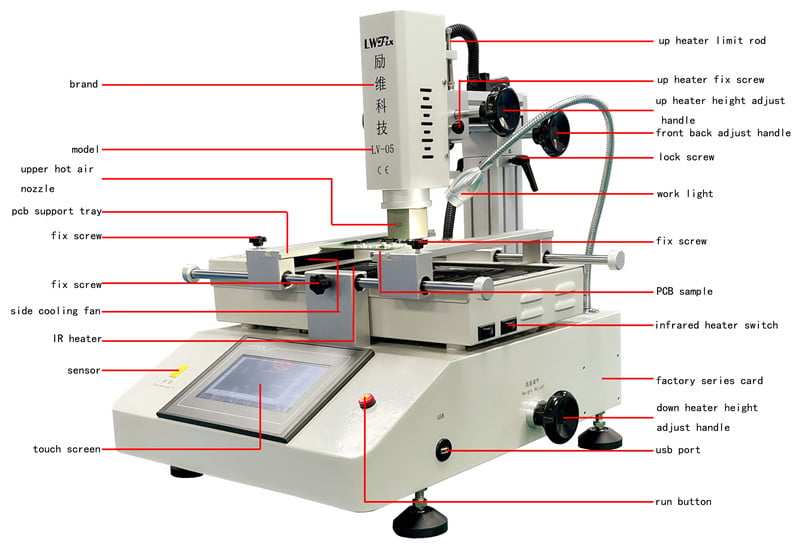

LV-05 Hot air infrared soldering station for repairing new energy vehicle motherboards
LV-05 Hot air infrared soldering station for repairing new energy vehicle motherboards
LV-05 Hot air infrared soldering station for repairing new energy vehicle motherboards
LV-05 Hot air infrared soldering station for repairing new energy vehicle motherboards
LV-05 Hot air infrared soldering station for repairing new energy vehicle motherboards
Factory Direct

LV-05 Hot air infrared soldering station for repairing new energy vehicle motherboards

New Design BGA rework station SMT line repair machine PCB assembly machine BGA rework station

Quality Assured
Factory Control
Fast Delivery
Global Shipping
0+
Views
500+
Orders
98%
Satisfaction
Contact Sales

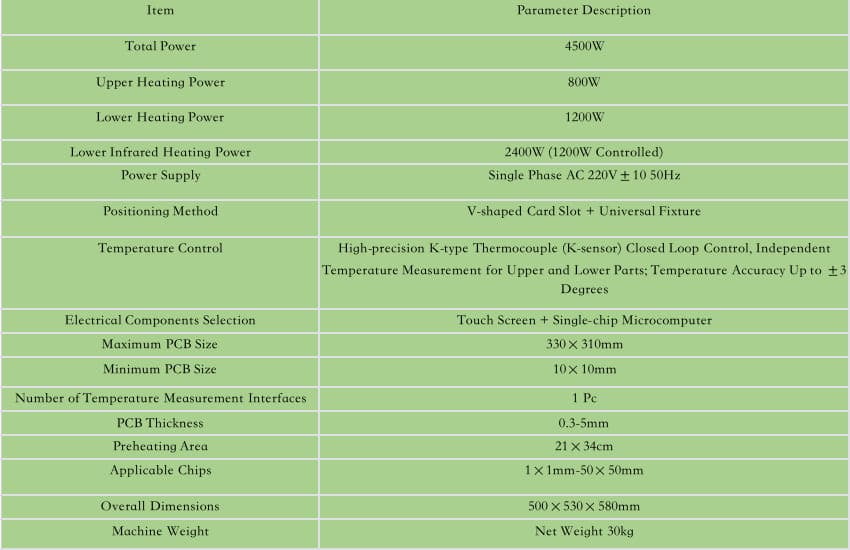

Product Information

Professional specifications and comprehensive information

1. Simultaneous local hot air heating for BGA chips/PCB boards + bottom infrared preheating, avoiding PCB deformation; flexible combination of upper/lower temperature zones.

2. High-precision K-type thermocouple closed-loop control + PID self-tuning, 4 temperature curves display, multiple data storage and instantaneous analysis, external temperature measurement interface for calibration.

3. HD adjustable CCD color vision alignment system (15” LCD monitor) + micrometer fine-tuning (X/Y axes/R angle, ±0.01mm accuracy) for precise alignment.

4. User-friendly operation: HD touch screen, 360° rotatable titanium alloy nozzles, 4 working modes (remove/weld/mounting/semi-auto), air speed percentage control (saved with temperature curve).
