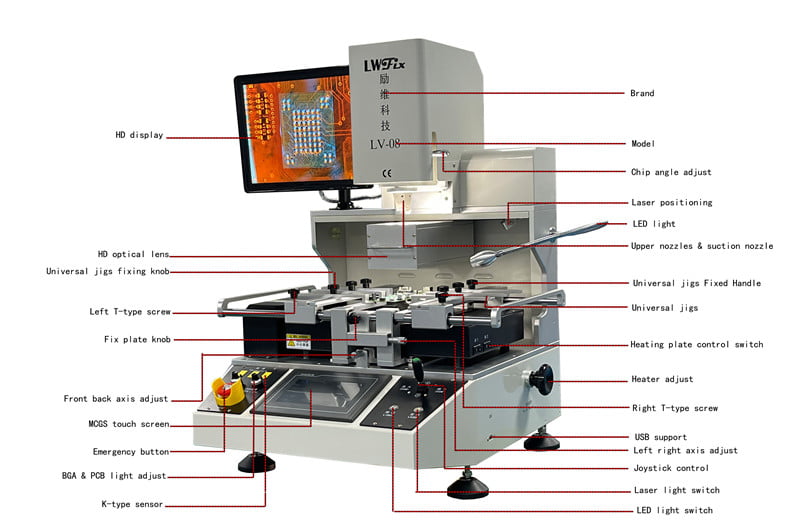

Liwei Optics LV-08 Infrared Laser Alignment Automatic Optical Equipment Rework Station | Soldering Station

1. 3-Zone Independent Temp Control: Upper/lower zones with hot air heating, IR preheating zone with infrared heating (±2℃ precision). 8 temperature control segments, supporting simultaneous heating of component tops and PCB bottoms. Large-area IR preheating prevents PCB deformation, with independent heating plate control and flexible upper/lower heater combination.
2. Precise Temp Regulation: High-precision K-type thermocouple closed-loop control + PID self-tuning. Displays 4 temperature curves, stores multiple user datasets, and offers instant curve analysis. External temp measurement interface enables precision detection, calibration, and parameter adjustment via touchscreen.
3. HD Optical Alignment: Split-beam CCD color vision system with zoom and auto-focus. Equipped with automatic chromatic aberration resolution and brightness adjustment, paired with a 15” HD LCD monitor for clear imaging.
4. User-Friendly & Versatile Operation: HD touchscreen HMI, integrated upper heating device and mounting head. 360° rotatable titanium alloy nozzles (easy to install/replace) and micrometer fine-tuning for X/Y/R axes (±0.01mm accuracy).
5. Enhanced Functional Advantages: 4 operating modes (remove, weld, mount, semi-auto). Percentage air speed adjustment (saved with temperature profiles) and slide rail-driven upper heating head for higher precision.
